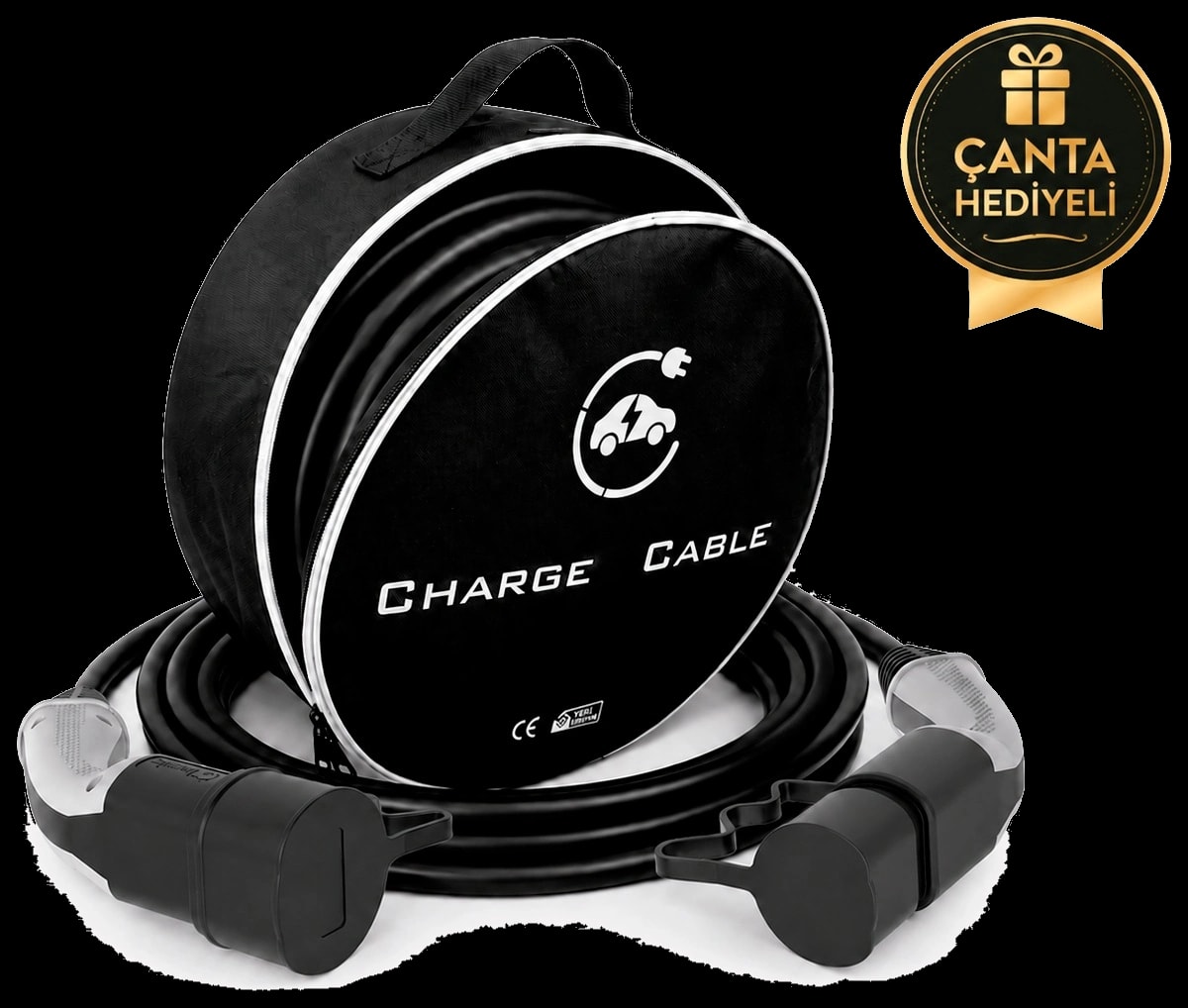

Charging Set 32A Three-Phase 22 kW 5m Wired

We find that a 5-metre cable is sufficient in most cases: it is ideal if the distance between the vehicle's charging socket and the wall does not exceed 3-4 metres when parked. If your garage or car park layout is different, 7.5 m and 10 m options are available. The longer the cable, the heavier and stiffer it is; choosing an unnecessarily long cable makes it harder to handle.

Type 1 (SAE J1772) is used in North American and older Asian vehicles and supports single-phase charging up to 7.4 kW. Type 2 (IEC 62196-2) is the European standard and supports three-phase charging up to 22 kW. Almost all new EVs on the Turkish market use Type 2. Older versions of the Tesla Model S/X used Type 1; new Teslas are Type 2.

16A cables handle up to 3.7 kW single-phase and 11 kW three-phase. 32A cables are rated for 7.4 kW single-phase and 22 kW three-phase. Choose the cable according to the highest current your wallbox or vehicle can draw; if the cable is the bottleneck, charging speed drops.

Because the connector type is standardised (Type 2 across virtually the entire European market), cable selection is brand-independent. The only difference is each vehicle's AC charging acceptance: if you buy a 22 kW cable for a vehicle that accepts 11 kW, no extra power flows; you simply have a safety margin.

Yes, a three-phase cable also supports single-phase charging. If your vehicle is single-phase, the cable automatically operates in single-phase mode and is limited to 7.4 kW. A three-phase cable saves you from replacing it if you buy a three-phase vehicle in the future.

Bemis E-V Charge manufactures its electric car charging cables at its own 16,000 m² facility in the Bursa Organised Industrial Zone. It builds on the heritage of Bemis Teknik Elektrik dating back to 1994; its Type 2 (Mode 3) cables are CE certified. The cables are not imported and relabelled; they are made in our own facility.

Bemis E-V Charge charging cables are manufactured in Türkiye, at our own facility in Bursa. This gives you direct access to the product, spare parts and technical support from the manufacturer; for project-based orders, cable length and socket colour can be customised on request.

A charging cable has a socket at both ends (Type 2 – Type 2); it connects a wall-mounted charging station or a unit in a shared area to your vehicle. A charging set (Mode 2) is a portable solution with a mains plug at one end and a control box in the middle; it lets you charge directly from a socket without a separate charging station. If you have a wall-mounted unit at home, a charging cable is the right choice; if you need a solution on the road or as a backup, a charging set is suitable.

A cable cannot deliver a speed higher than the current it is rated for; what actually determines charging speed is your vehicle's on-board AC charger. For example, if your vehicle is limited to 7.4 kW, fitting a three-phase 32A cable will not make it faster. Conversely, a low-capacity cable limits the speed: a single-phase 16A cable carries up to 3.7 kW, single-phase 32A up to 7.4 kW and three-phase 32A up to 22 kW. The right choice is the cable that matches the highest value supported by both your vehicle and your charger.

Our products are covered by a 2-year manufacturer's warranty. Do not open or attempt to repair the cable yourself; unplug it and stop using it. Contact the authorised dealer you purchased it from, or reach us by following the steps on the Support page under the Guide menu of our website. The product code, proof of purchase and a photo or video showing the problem speed up the process.
